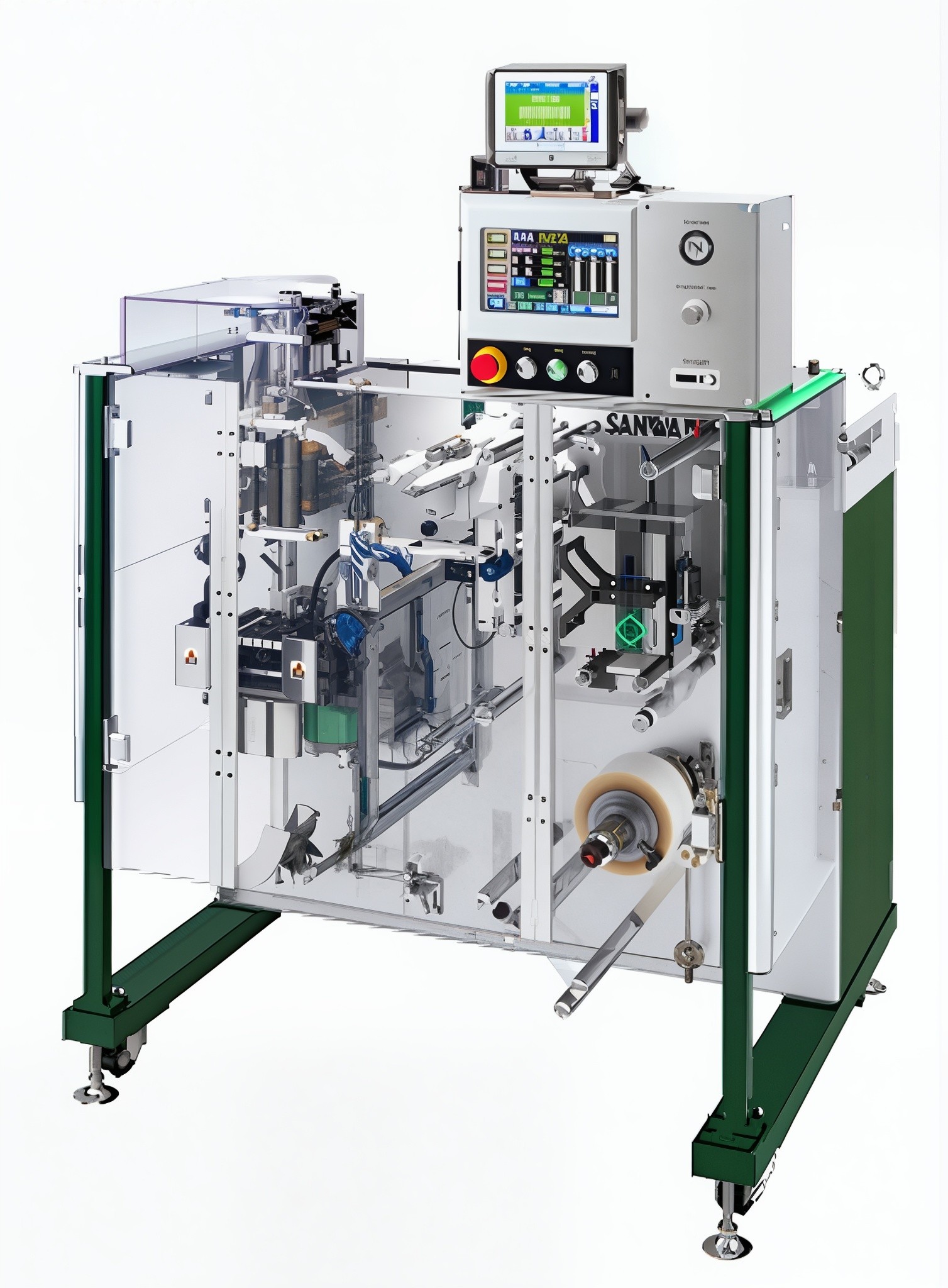

WF-9100S

For various small bags: pyramid pouches, pillow bags, and continuous pouches

Small body with advanced technology to produce beautiful bags.
This pyramid pouch bagger is loved by many users pursuing aesthetic values for packages.

Bag Style

Bag Size
(mm)
Pyramid pouches
Pillow bags
Continuous pouches with header and easy tear-off perforation
WIDTH
35
LENGTH
40

Features

  • Box motion is used in order to achieve shortening cycle time and stability of the seal by doing film feed and seal simultaneously.
  • This is a high performance machine even though it is a small bag packaging machine and the timing for each part such as the LCD touch panel, can be adjusted.
  • Since a unit type former pipe that desorbs is used, it a machine with excellent durability.

Main Specifications

Machine Dimensions（mm）
W 1000 × D 1360 × H 1530
The height is adjustable for your smooth production.
Packaging films:
Laminated films / Monolayer films(Optional)
Capacity (Max.)
Pyramid pouches 70 bags/min
Pillow bags 80 bags/min		 Power Consumption:
3PH AC200/220V,1.5kW
Compressed Air:
Approx.200L(Normal)/min(0.6MPa) at 60 bags/min
Machine Weight: Approx.400 kg
